Cold-air aroma atomization system

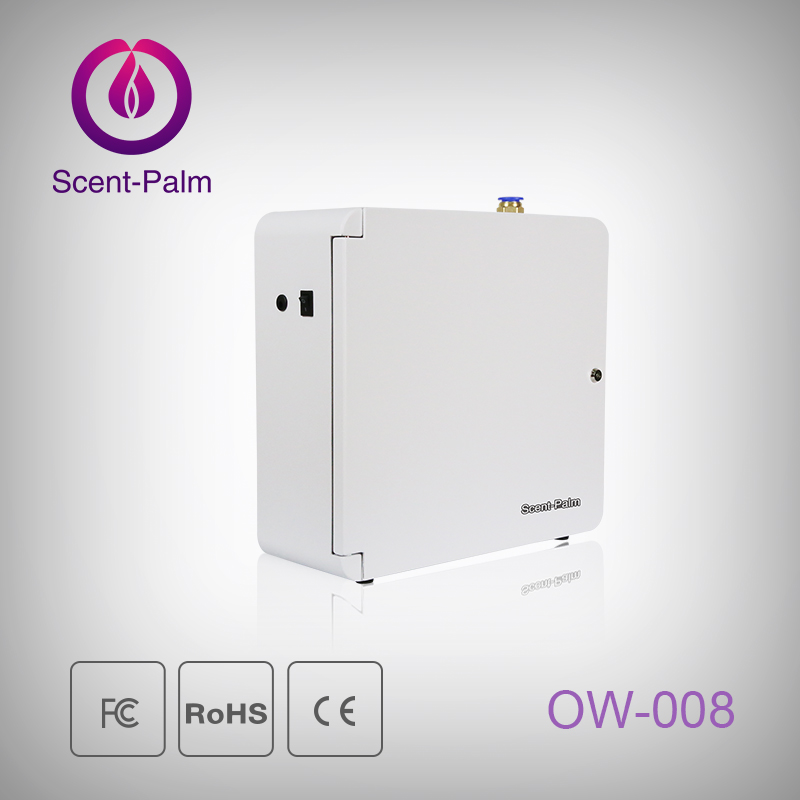

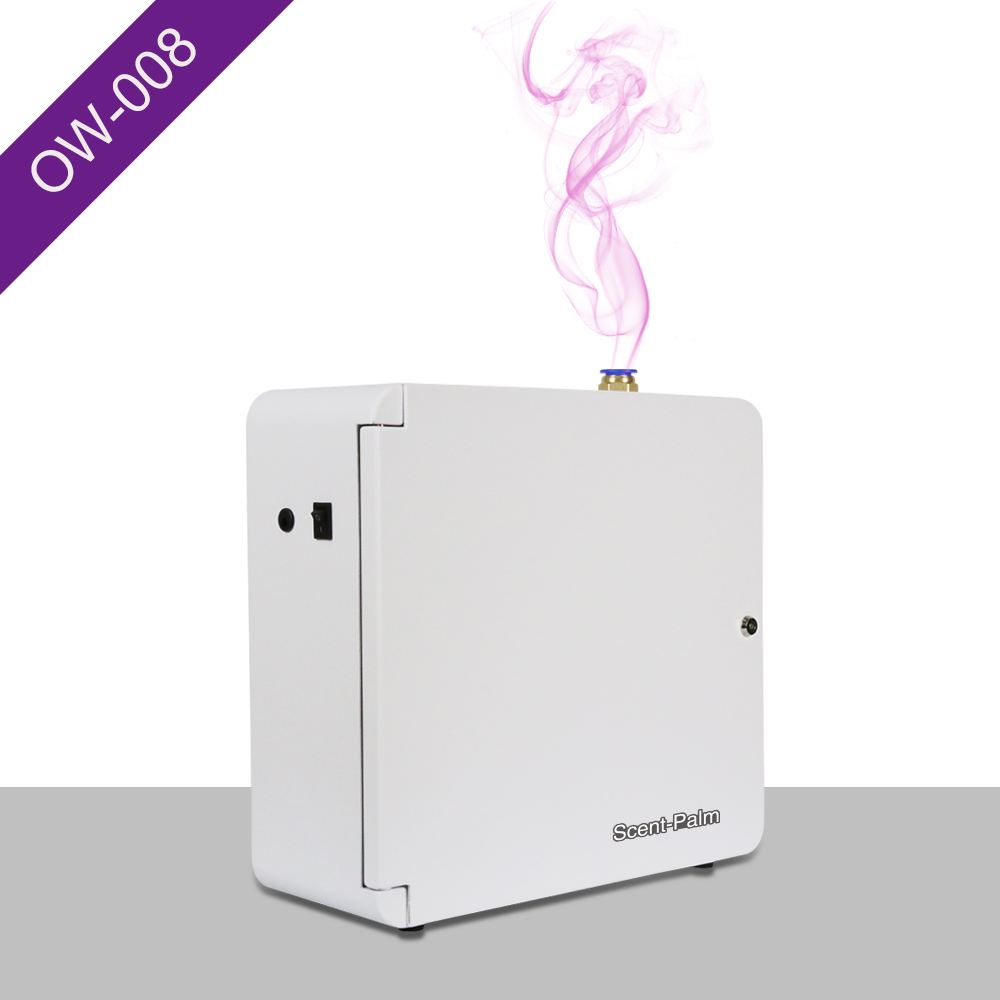

Smellitzer® 008

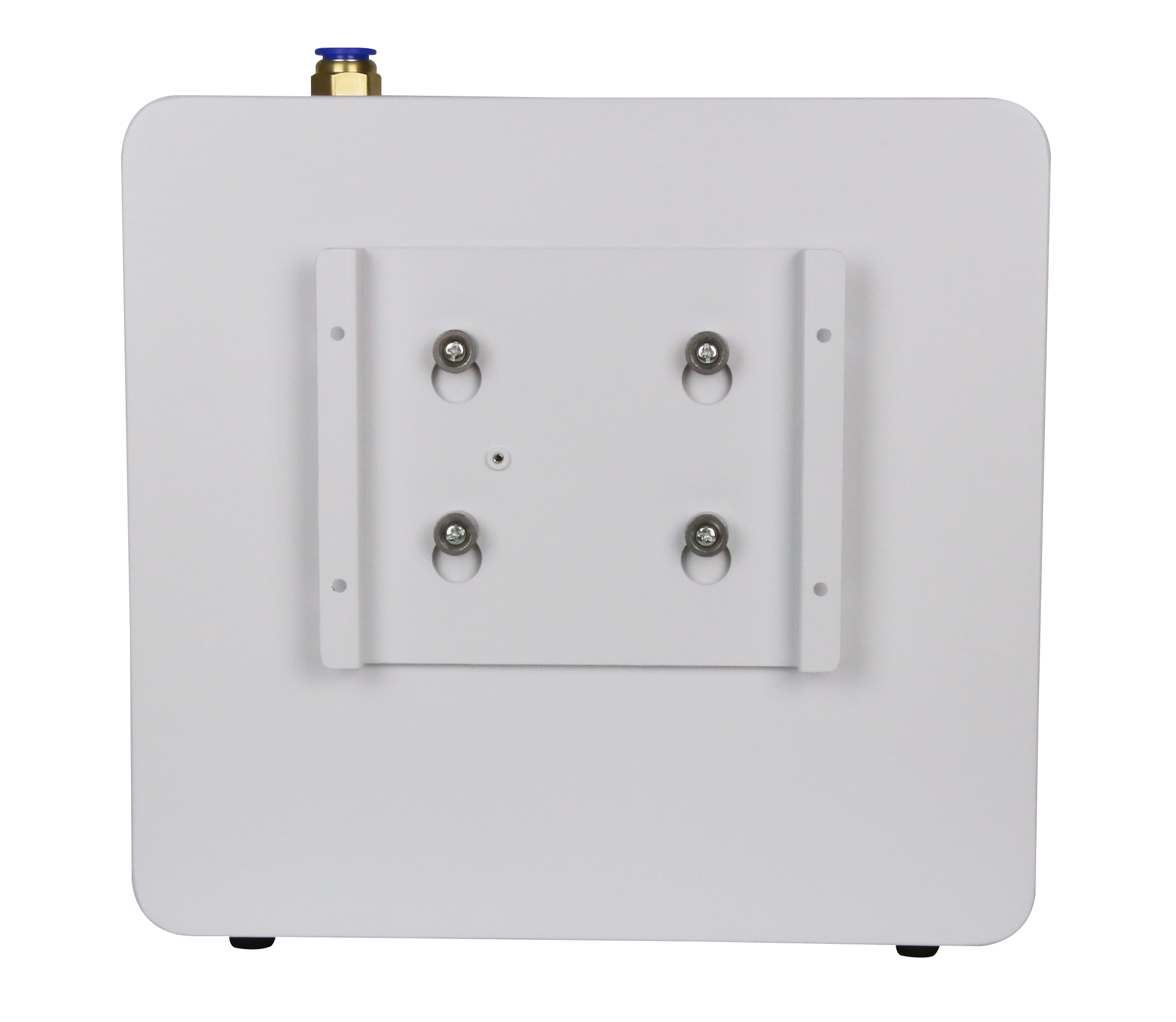

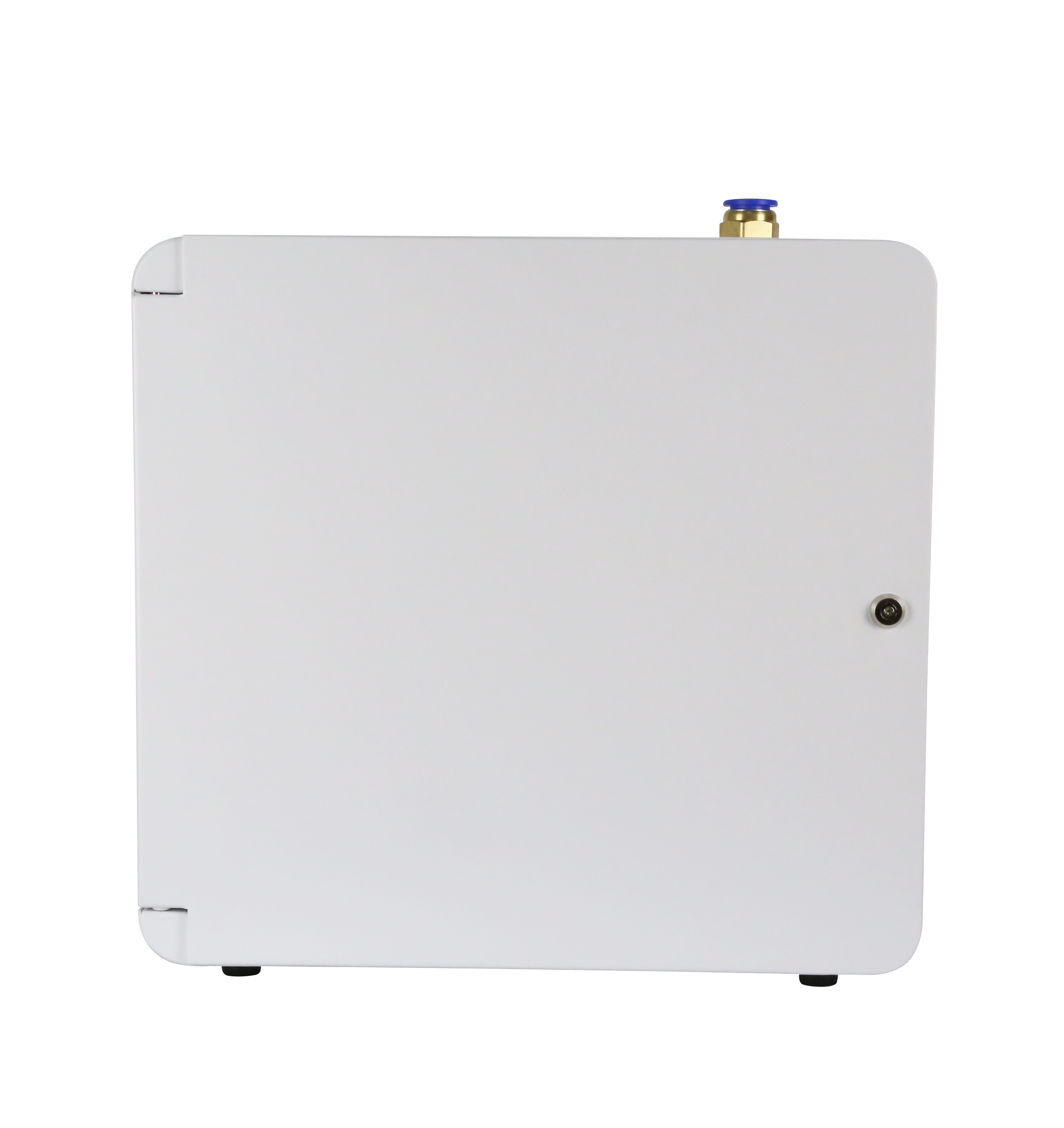

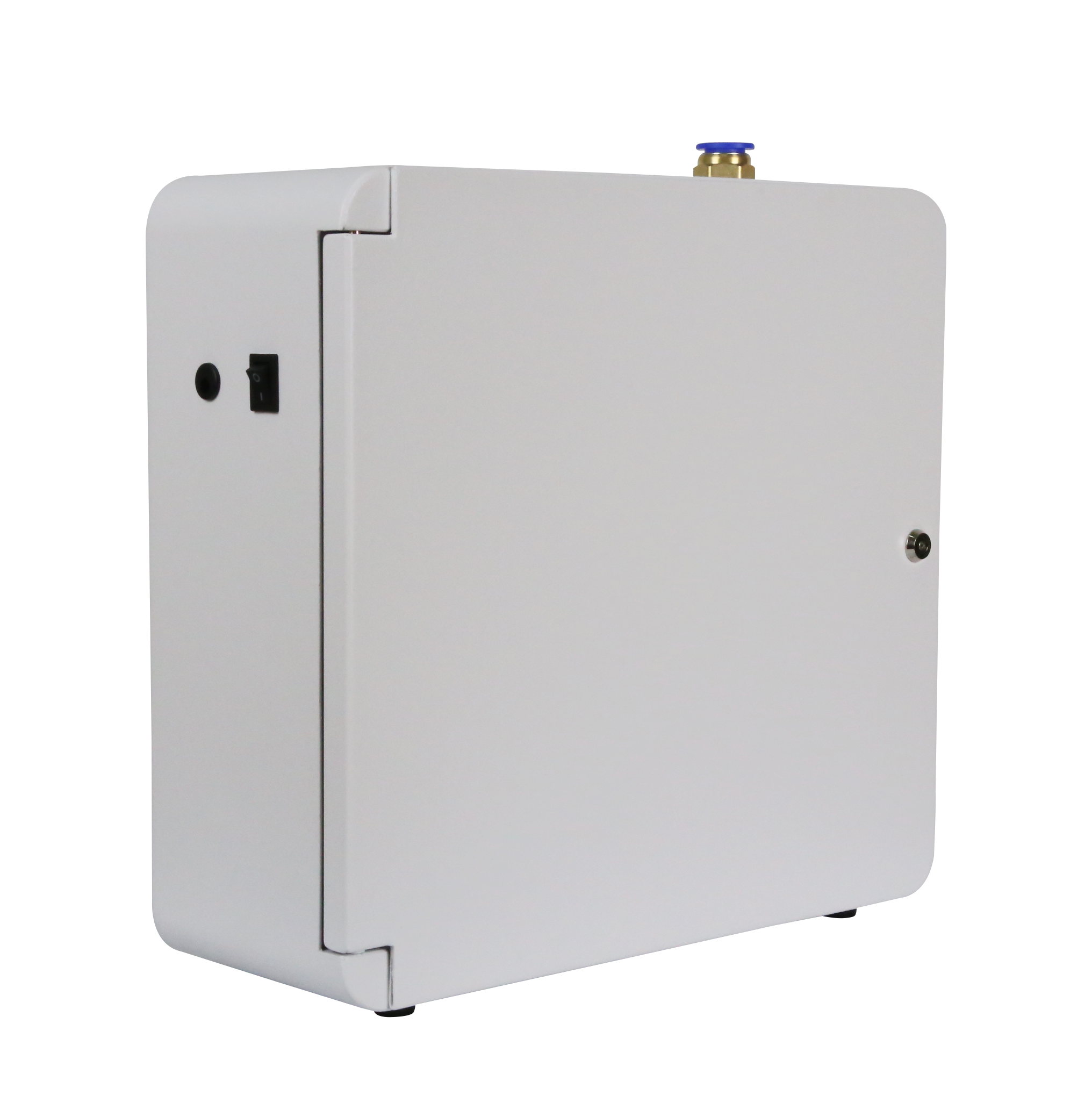

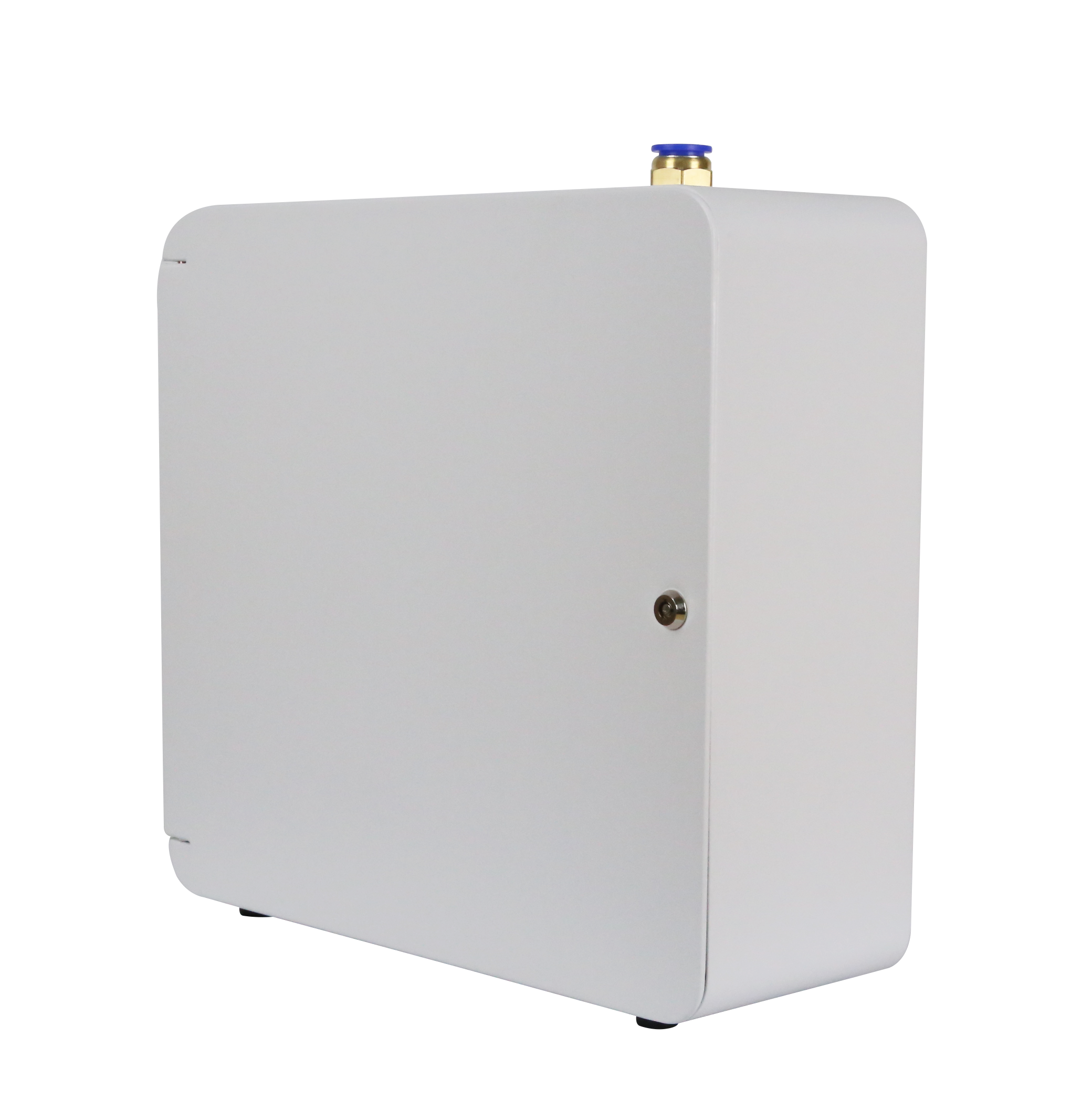

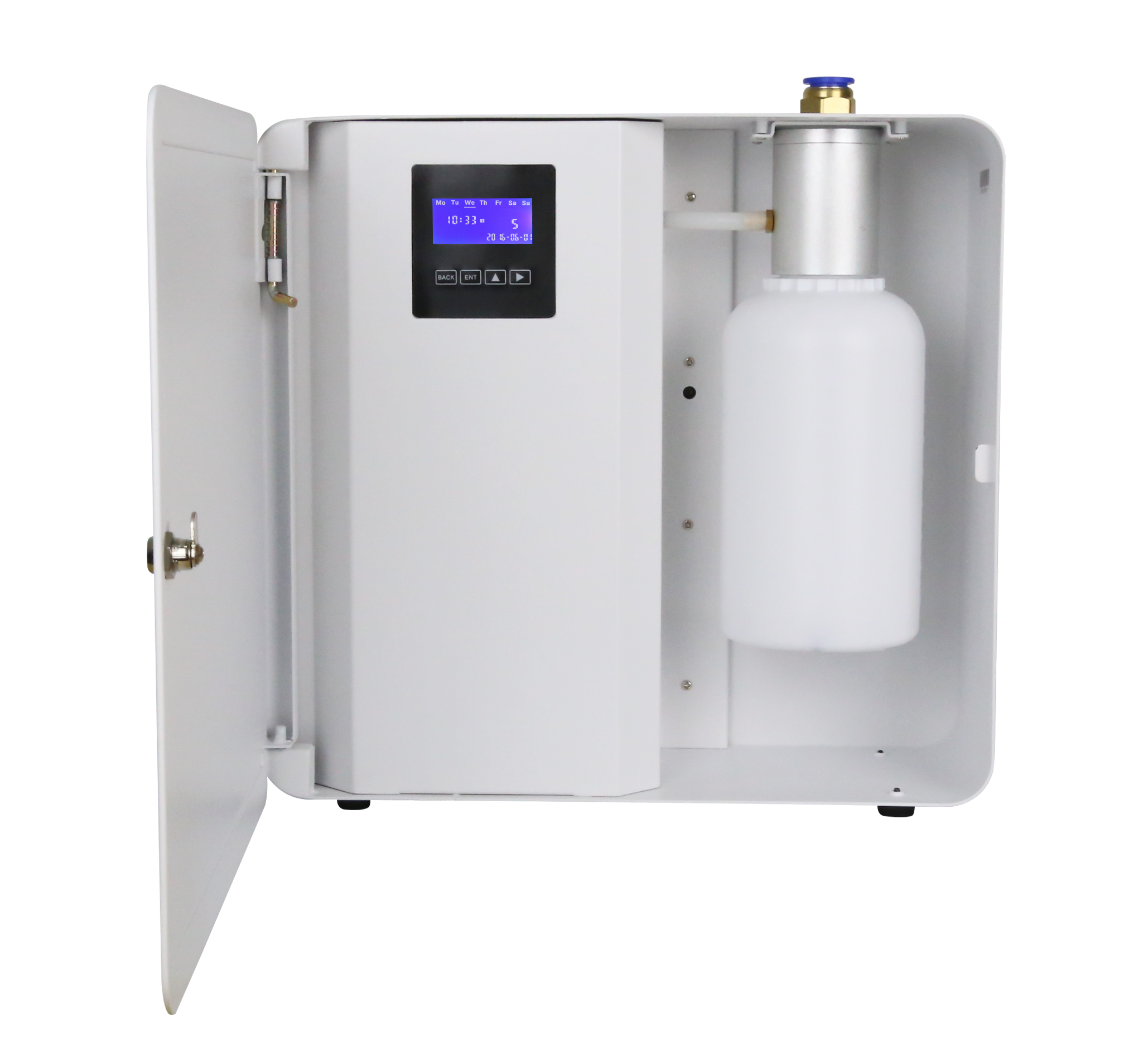

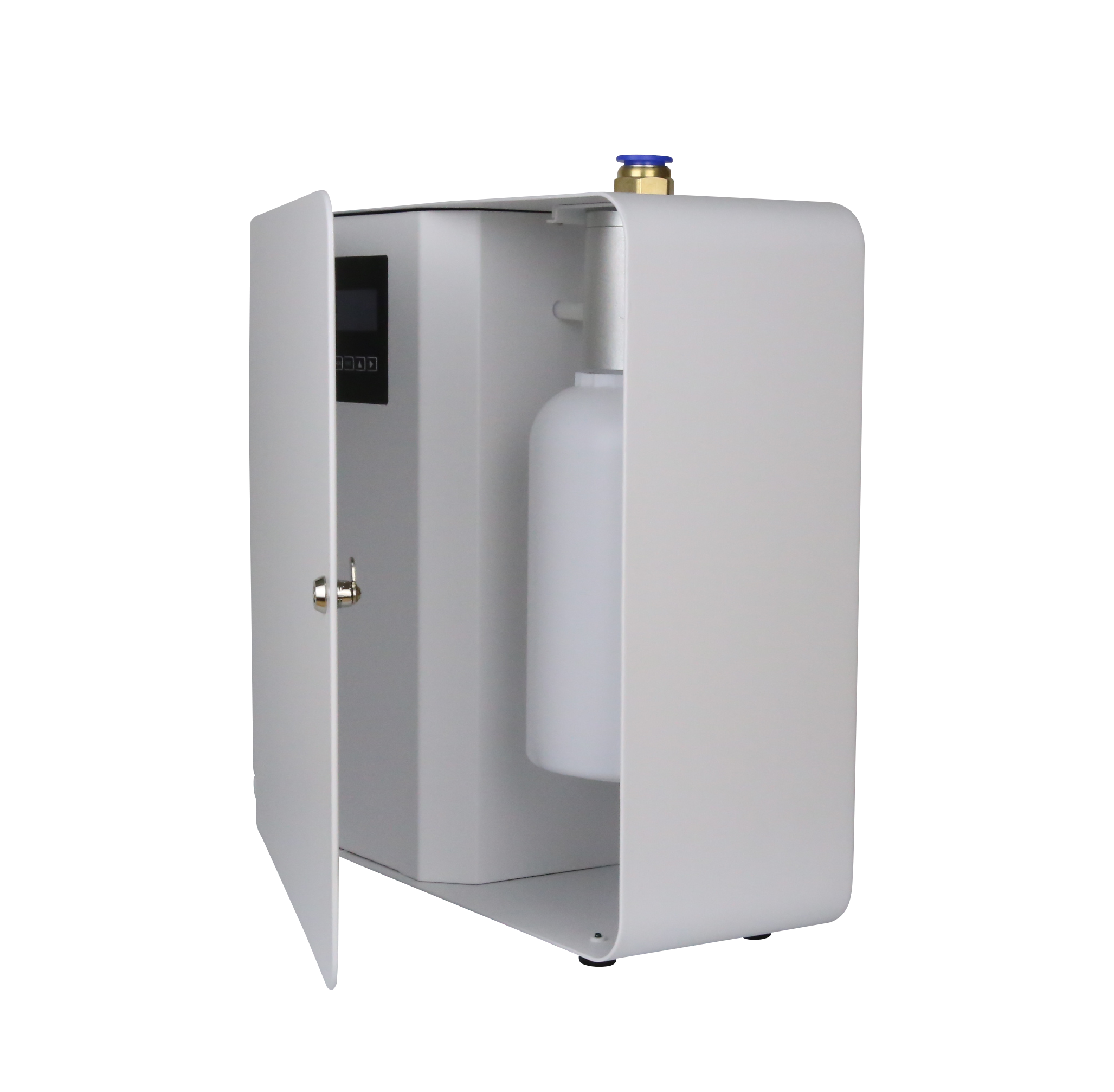

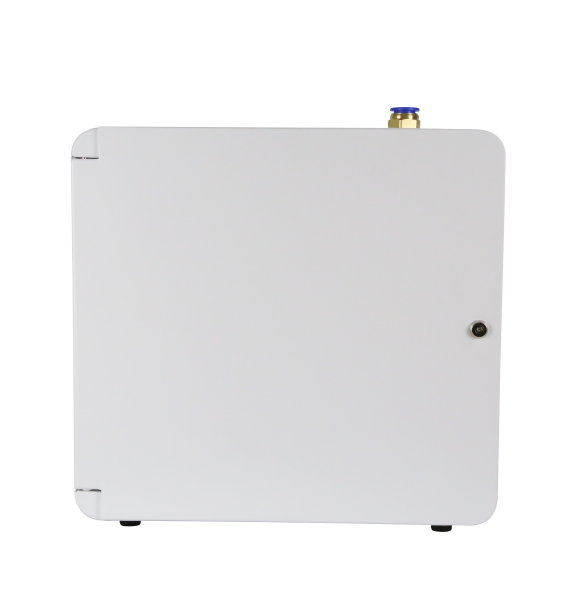

The Smellitzer 008 is a wall mountable and free standing unit that is suitable for very large aroma distribution. The cabinet is lockable with a key and this protects the large capacity aroma bottle and the programmable control panel. For the best application, the aroma can be piped directly into an existing air conditioning ducting for distribution throughout your venue.
Precision atomization
Smellitzer® 008 Oil Usage
| Level | Work (s) | Pause (s) | ml/hour | 24 hour | Days (approx.) |
|---|---|---|---|---|---|
| 1 | 10 | 300 | 0.300 | 7.20 | 139 |
| 2 | 30 | 300 | 0.927 | 22.25 | 45 |
| 3 | 100 | 300 | 2.325 | 55.80 | 18 |
| 4 | 60 | 120 | 3.204 | 76.90 | 14 |
| 5 | 90 | 120 | 4.221 | 101.30 | 10 |
| 6 | 150 | 120 | 5.200 | 124.80 | 9 |
| 7 | 150 | 60 | 6.685 | 160.44 | 7 |
| 8 | 300 | 60 | 7.800 | 187.20 | 6 |
| 9 | 300 | 10 | 9.058 | 217.39 | 5 |
Gallery
